Specification	Detail

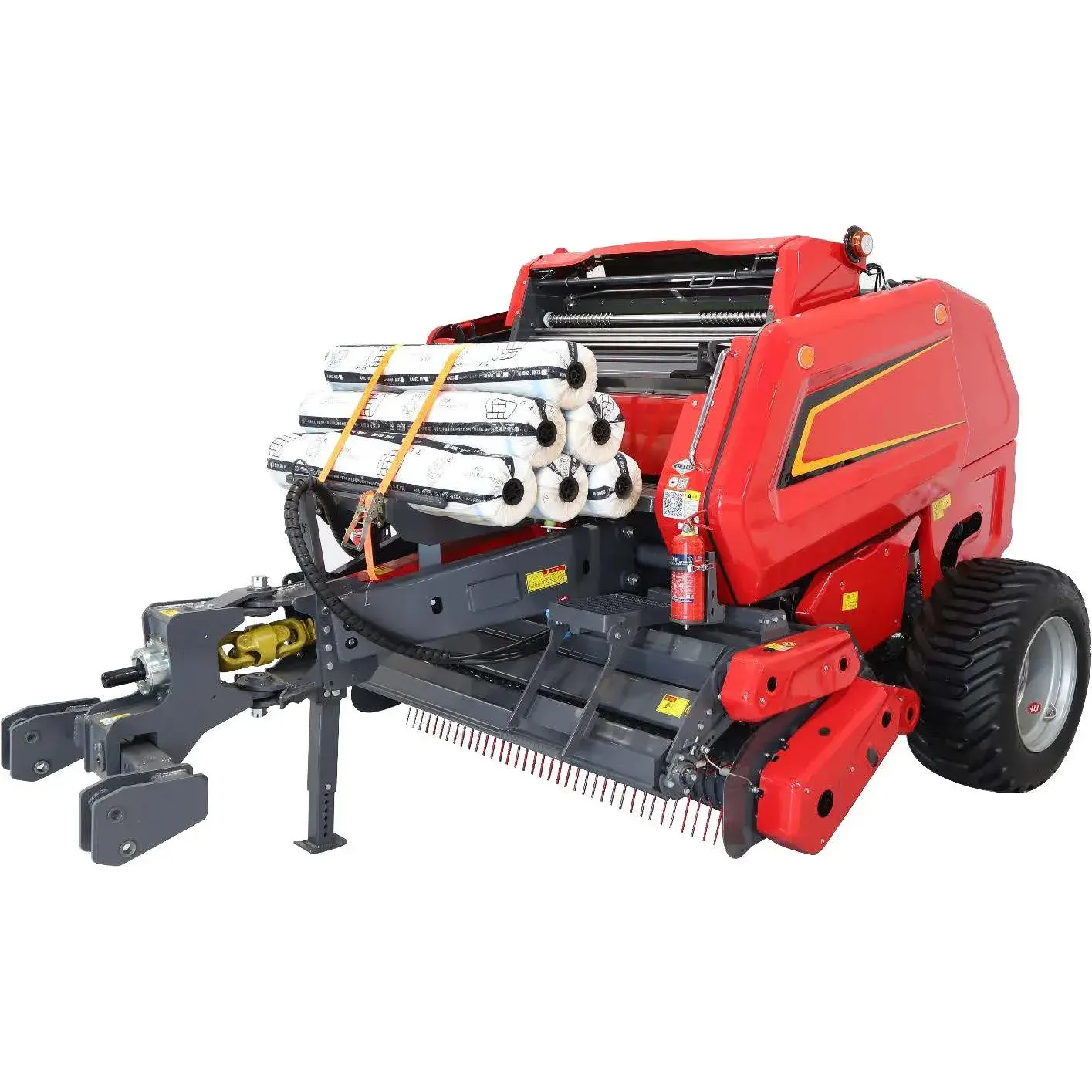

Model	9YG-2.24D (S9000 Classic)
Pick-up Width	2,240 mm
Bale Diameter	1,300 mm
Bale Width	1,400 mm
Power Required	55–100 kW
Output	40–100 bales/hr
Bale Density	100–200 kg/m³
Net Wrap	Automatic
Working Speed	5–35 km/h
Hitch Type	H‑type hydraulic quick‑coupling
Machine Weight	4,312 kg
Chain System	Dual-sided 20A reinforced
Density Control	Electronic sensor

Reliable Commercial Output for Mixed‑Crop Farms and Multi‑Tractor Operations

The Ever-Power S9000 Classic delivers every performance feature that matters for output quality — electronic sensor density control, 2,240 mm full-width pick-up, 40–100 bales per hour, automatic net wrapping — while prioritising the operational flexibility that multi-tractor and multi-operator farms value most highly. The H-type hydraulic quick-coupling system is the defining feature that separates the Classic from the S9000 Pro, and for operations where tractors change frequently, it is a genuine daily advantage.

At 4,312 kg — 258 kg lighter than the S9000 Pro — the Classic is marginally more agile in field turns and slightly easier on the lower end of the compatible power range. For farms where the baling tractor also serves other implements and must be uncoupled and recoupled multiple times per day, the H-type system reduces each coupling event from a 20–30 minute manual alignment procedure to a sub-10 minute hydraulic engagement.

H-Type Hydraulic Quick-Coupling: Daily Efficiency for Multi-Tractor Operations

Standard mechanical PTO coupling involves manual shaft alignment, physical insertion of the drive shaft with safety shield positioning, connection of hydraulic lines, and verification of alignment before use. In muddy field conditions or at end of day, this routinely takes 20–30 minutes and is a recurring source of equipment damage when alignment is not correctly verified.

The H-type hydraulic coupling on the S9000 Classic engages and disengages the main drive shaft hydraulically with self-aligning geometry. The operator manoeuvres the tractor to the coupling point, engages the hydraulic connection, and the system locks into position. Under normal conditions, the entire coupling process takes under 10 minutes with a single operator. For farms running two tractors — one on the mower, one on the baler — or contractors who transfer the baler between sites mid-day, the daily time saving is substantial.

Sensor-Controlled Density: Identical to the S9000 Pro

The electronic bale density sensor system on the S9000 Classic is identical in function and specification to the system used in the S9000 Pro. There is no compromise on density control capability between the two models. Both maintain target density automatically between 100 and 200 kg/m³ throughout the baling cycle, compensating for windrow variation, crop moisture changes, and operating speed variation without operator intervention.

For commercial hay operations selling bales to processors, feedlots, or direct to livestock farmers, consistent density directly affects commercial pricing and buyer relationships. Buyers who specify minimum density requirements — an increasing number, particularly for export-quality product — can rely on a consistent supply from a S9000 Classic-equipped operation. The sensor removes the variability that comes from manual pressure adjustment across different operators and crop conditions through the season.

Mixed-Crop Performance Across the Argentine Season

Autumn and Winter: Mixed Pasture and Native Grassland

Late autumn and winter baling on pampas properties typically involves mixed ryegrass and fescue swards, native grassland species, and overwintering forage crops. Material density varies with growth stage and species composition. The S9000 Classic's 2,240 mm pick-up handles mixed-density windrows consistently, gathering full windrow width in one pass. Sensor density management compensates for species variation in material resistance without operator adjustment.

Spring: Lucerne First Cut

Spring lucerne is high-value, high-moisture material at first cut. It is also the crop where bale density consistency is most commercially important — premium lucerne buyers specify density minimums. The sensor system maintains consistent target density through the moisture and density variation typical of a full day's lucerne baling, from wetter morning material to drier afternoon bales.

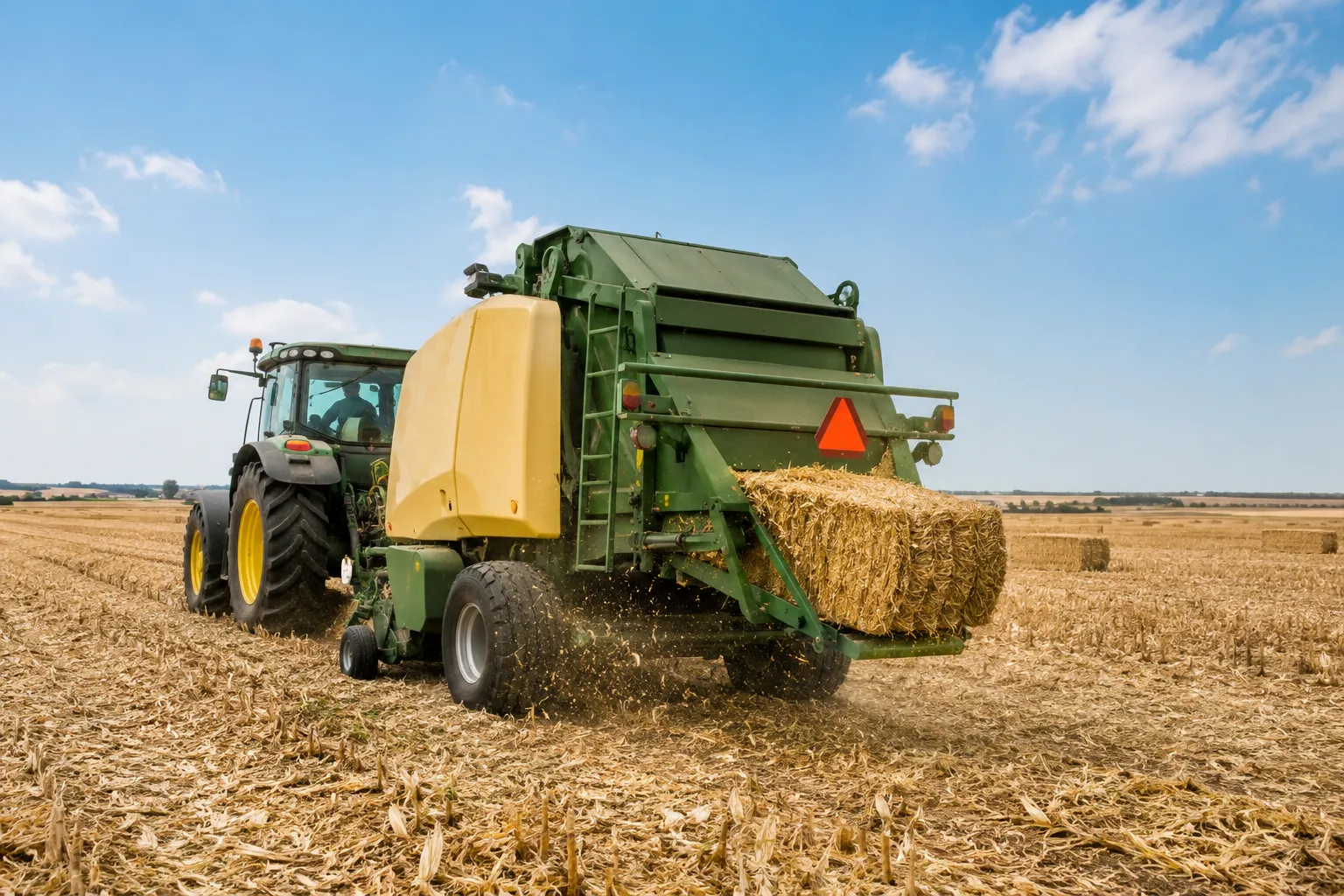

Summer: Wheat and Barley Straw

Post-harvest straw windrows are typically wide, dry, and abrasive. The full 2,240 mm pick-up handles wide combine-header-width windrows in a single pass — critical for contractors working efficiently through large grain properties where baling windows between harvests are short.

Autumn: Corn Stalk and Silage

Cut and raked corn stalk is handled by the standard spring-tooth pick-up effectively when laid flat by prior mowing and raking. For silage baling, the high-pressure compression chamber produces bales suitable for film wrapping, with sensor density consistency required for reliable fermentation quality.

Dual-Sided 20A Chain System: Engineering for Long-Term Reliability

The compression force in the S9000 Classic's baling chamber is transmitted through a dual-sided 20A reinforced chain system. Using 20A chains on both sides — rather than lighter-rated chains — reflects a design decision to prioritise long-term reliability over short-term manufacturing cost reduction. Compression chains operate under cyclic loading: each bale cycle subjects the chains to repeated loading and unloading. Chain fatigue is a function of peak load relative to chain rated capacity. Using 20A chains rated above the operating peak reduces the percentage of capacity used per cycle, extending fatigue life materially beyond what lighter alternatives achieve.

Frame Construction and Corrosion Protection

The S9000 Classic's structural frame is produced on CNC laser-cutting equipment from certified structural steel plate. CNC cutting ensures every frame component meets its specified dimensions within tolerance — a requirement for correct alignment during assembly and for consistent structural behaviour under dynamic operational loading. Welding is completed on automated robotic lines under controlled parameters, eliminating the weld quality variation inherent in manual processes.

After fabrication, the machine undergoes a multi-stage surface treatment process. Electrostatic coating — which deposits uniform coating thickness across complex geometries including internal recesses, weld seams, and bolt holes — provides corrosion resistance rated for outdoor agricultural use across multiple seasons in conditions ranging from the humid Buenos Aires pampas to the drier north-west.

After-Sales Support in Argentina

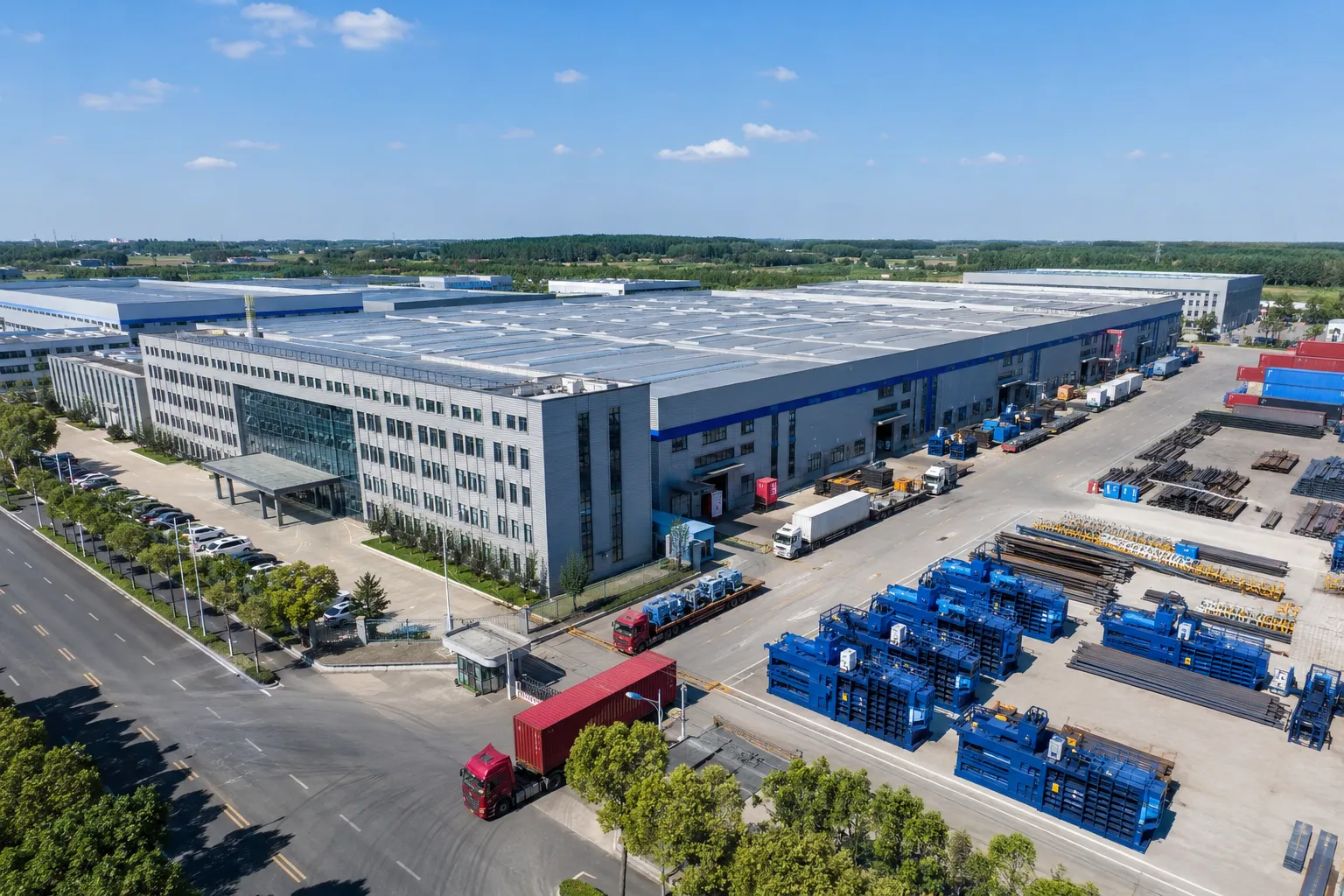

Ever-Power Forage Baler S.A. maintains its operational base at Parque Industrial Pilar in Buenos Aires Province — Argentina's primary agricultural and industrial park zone. This provides direct access to logistics infrastructure for spare parts dispatch to all Argentine provinces and neighbouring South American markets. Technical support is provided in English and Spanish. Response time for written enquiries is within 24 hours on business days. For urgent technical issues during peak harvest, a priority response channel is available — contact details provided with every machine at delivery.

Buying Decision Guide

Both S9000 machines offer identical baling performance — same output, same density control, same pick-up width. The decision rests on two operational questions:

How important is headland turn efficiency? Large flat paddocks with frequent headland turns favour the Pro's dual gearbox. Paddocks with longer rows where headland frequency is low reduce the gap between Pro and Classic.

How often does your baler change tractors? A dedicated baling tractor through the season suits either model. Regular tractor transfers — between machines, properties, or operators — favour the Classic's H-type coupling.

Frequently Asked Questions

What is the practical advantage of the H-type coupling over a standard hitch?

Standard mechanical PTO coupling requires manual shaft alignment and typically takes 20–30 minutes with two people in difficult conditions. The H-type hydraulic coupling engages in under 10 minutes with one person. For multi-tractor operations with daily tractor changes, this saves 10–20 minutes per changeover.

Can I retrofit the H-type coupling to other balers?

The H-type coupling is specific to the S9000 Classic's driveline geometry. It cannot be retrofitted to other baler models as a standalone upgrade. If coupling speed is your primary requirement, the S9000 Classic is the correct model choice.

Can the S9000 Classic handle silage baling?

Yes. The high-pressure chamber and sensor density control produce bales suitable for film wrapping. Contact us to discuss pairing with the 9YCM-850 wrapper for one-pass silage production.

What is the installation process at first delivery?

The machine is delivered assembled and tested. First installation involves attaching via the H-type coupling, connecting PTO and hydraulic circuits, and completing the pre-use checklist in the English-language operator manual. Remote video commissioning support is available from our Buenos Aires team.

What Argentine provinces do you ship to?

We ship to all Argentine provinces from our Parque Industrial Pilar warehouse, covering Buenos Aires, Córdoba, Santa Fe, Entre Ríos, Mendoza, and all other provinces. Contact us for freight cost to your specific location.

Are spare parts available locally in Argentina?

Yes. We maintain a spare parts inventory at Parque Industrial Pilar. Common consumables — pick-up tines, net wrap knives, chain links, bearings — are stocked for same-week dispatch. For planned maintenance, we recommend pre-ordering consumables at the start of each season.

Why Ever‑Power: Verifiable Manufacturer Credentials

For a capital machinery purchase from a manufacturer you have not previously worked with, the question of credibility is legitimate. Every credential cited for the S9000 Classic is independently verifiable.

• ISO 9001:2015 Certification — Issued by Beijing United Certification (IATF-accredited). Covers design, manufacturing, and after-sales. Renewed on a three-year audit cycle. Certificate number available for verification.
• National High-Tech Enterprise, Certificate GR202315000192 — Government-issued recognition requiring documented R&D investment, qualified personnel ratios, and intellectual property holdings. Reassessed every three years.
• 100+ Registered Technology Patents — Patent registration numbers available on request for verification through national patent registries.
• AAA Credit Enterprise Rating — Independent financial stability assessment. Relevant for buyers placing deposits or advance payments.
• AGMA Best Innovation Award 2023 — Independent industry panel recognition at the International Agricultural Machinery Expo.
• Market Leadership 2023 and 2024 — Two consecutive years ranked first in the commercial round baler category. Reflects sustained purchase preference by farmers with direct knowledge of alternatives.

Real‑World Operating Scenario

A mixed dairy and hay property in Entre Ríos Province runs the S9000 Classic as its primary baler with the H-type coupling enabling the same baler to serve both the dedicated baling tractor and the secondary tractor that handles other tasks. During lucerne season, the property completes a full cutting and baling cycle every 35–45 days. The H-type system allows the baler to transfer between tractors based on which is free for the baling task — without the extended coupling time that would otherwise prevent that flexibility. After three seasons of operation, the property reports consistent bale density across all operators and operating days, supporting their commercial sales to neighbouring feedlots that specify density minimums.

Technical Detail: How the S9000 Classic Performs in the Field

The S9000 Classic operates the same compression and density control sequence as the S9000 Pro. The key operational difference becomes apparent at tractor change events. When the baling tractor needs to be exchanged — at end of day, at property change, or when the same tractor is needed for another task — the H-type hydraulic coupling dramatically simplifies the disconnection and reconnection process. An operator familiar with the H-type system can disconnect from one tractor and connect to another in 8–12 minutes. The hydraulic engagement ensures correct drive shaft alignment every time, eliminating the trial-and-error alignment that manual PTO connection often requires in poor lighting or wet field conditions. In the field, the Classic's 2,240 mm pick-up and sensor density system produce results indistinguishable from the S9000 Pro.

Regional Application Context

Argentine farming regions present diverse operational requirements that the S9000 Classic accommodates through its 2,240 mm pick-up and broad crop compatibility. Buenos Aires Province humid pampas operations value its consistent output across short weather windows between rainfall events. Córdoba mixed cropping operations use it across the spring-summer-autumn crop rotation without configuration changes. Santa Fe and Entre Ríos dairy zones rely on its sensor density consistency for forage destined to intensive milk production systems. Patagonia and arid zones benefit from its ISO-certified construction in operations where service support is geographically distant. The H-type coupling adds particular value in cooperative or shared-equipment operations where the baler regularly transfers between properties or operators.

Total Cost of Ownership: A Five-Year Perspective

The S9000 Classic delivers identical baling output to the S9000 Pro at a slightly lower purchase price, with the H-type coupling providing offsetting daily time savings in multi-tractor operations. Over a five-year period, total cost of ownership comparison between Classic and Pro depends on whether your operation extracts more value from the Pro's gearbox-based headland efficiency or the Classic's coupling-based changeover efficiency.

Annual maintenance on the S9000 Classic typically runs 2–4% of purchase price for a well-maintained machine. The main cost centres are pick-up tines (replaced at 800–1,200 bale intervals), chains (adjusted regularly, replaced at 3–5 seasons), net wrap knives (annually), and bearings (2–3 year replacement cycle). Downtime cost during peak harvest has an opportunity value: bales not made during optimal cutting windows either require re-cutting at lower quality or are lost entirely. The S9000 Classic's blockage-resistance reduces unscheduled stops — translating directly to more operating hours during harvest windows. Residual value at sale reflects market perception of brand quality; ISO-certified machines with documented build quality hold value better in the second-hand market than uncertified equivalents.

Pre‑Purchase Qualification Checklist

Before finalising your order, confirm the following with your operating team:

• Your tractor produces at least the rated PTO power for this machine — verified against rated specification, not nameplate engine power
• Your annual bale volume justifies the throughput capacity of this model relative to lower-output alternatives
• Your storage and bale-handling infrastructure is compatible with the bale dimensions produced
• Your service access supports the parts supply lead time from our Buenos Aires warehouse (5–7 days for most locations)
• Your seasonal harvest timing allows adequate lead time for order placement, production (30–60 days), and delivery

Send your answers to [email protected] for a personalised recommendation and quotation within 24 hours.

Order Process and Delivery Timeline

From first enquiry to machine arrival at your farm, the typical sequence is: Day 1–2, enquiry and quotation with CIF price returned within 24 hours. Day 3–7, order confirmation and deposit, production slot allocated, delivery date confirmed. Day 5–65, production (30–60 days). Quality inspection, documentation, and container loading at our Parque Industrial Pilar facility. Ocean freight from Buenos Aires to destination port follows. After port arrival, buyer arranges customs clearance and inland transport. Within 7 days of farm arrival, remote video commissioning support from our Buenos Aires team is available for first setup and operation.

Why Choose Ever‑Power Over European Brands

Many buyers evaluating the S9000 Classic are also considering established European baler brands with long histories in the Argentine market. Three honest comparison points clarify the decision.

On price: At equivalent specification levels, Ever-Power machines carry a 25–45% price advantage versus European equivalents. This reflects manufacturing cost differences between production environments, not quality compromises. The same ISO 9001:2015 quality management standards apply to production in any certified facility, regardless of cost environment.

On specification: The S9000 Classic's key technical features — sensor density control, axial-flow feeding, camless pick-up where applicable — match or exceed equivalent-class European machines. The dual gearbox on the S9000 Pro and 9YG-2.24D is a patented innovation not available on all European alternatives at comparable price points. 100+ registered patents reflect genuine engineering differentiation.

On parts availability: Established European brands have decade-old Argentine distribution networks. Ever-Power Forage Baler S.A.'s Buenos Aires operation is newer but stocked for current-model support. Common consumables are stocked locally; less common components ship from our Argentine warehouse with 5–7 day delivery to most provinces. As the Ever-Power installed base grows, local stocking expands accordingly.

Market Position in the Multi-Tractor Operations Segment

The S9000 Classic has found particular adoption among operations that share equipment between tractors or properties — a configuration common in Argentine mixed family farming, cooperative arrangements, and contracting operations with rotational equipment use. The H-type hydraulic coupling provides a daily operational benefit in these configurations that conventional couplings cannot match. Customer feedback consistently identifies the coupling speed and consistent alignment as the primary daily-use advantages reported after extended operation.

Across the Ever-Power range, the S9000 Classic occupies the position of the highest-output machine for operations that prioritise coupling efficiency over headland turn efficiency. For buyers whose operation involves regular tractor transfers during the working day, the S9000 Classic delivers the same baling output as the S9000 Pro with daily coupling-related time savings that compound across the season into significant operational efficiency improvements.

Pairing with Other Ever‑Power Equipment

The S9000 Classic integrates with the same Ever-Power range as the S9000 Pro: the 9GQY-3.2 mower conditioner for front-end cutting and conditioning, the 9LH-12 or finger wheel rakes for windrow formation, the 9YCM-850 baler-wrapper for silage operations, and the 9JYY-4.5 transporter for bale logistics. The H-type coupling on the Classic does not affect compatibility with these companion machines — it affects only the tractor-to-baler connection.

For mixed-equipment operations running both Ever-Power and other-brand equipment, the S9000 Classic's bale dimensions (1,300 mm diameter x 1,400 mm width) are compatible with the full range of bale handling equipment in the Argentine market. There is no equipment lock-in: bales from the S9000 Classic feed any bale processing, transport, or storage system designed for standard 1,300–1,400 mm round bales.

Extended Frequently Asked Questions

What documentation comes with the machine?

Every machine ships with English-language operator and maintenance manual, warranty certificate identifying serial number and coverage, certificate of conformity, parts catalogue with all serviceable component part numbers, and installation checklist. For export orders, commercial invoice, certificate of origin, and phytosanitary certificate accompany the shipment.

Can I visit your facility before placing an order?

Yes. Contact [email protected] to arrange a visit to our Parque Industrial Pilar facility. In-person inspection and machine demonstration is available for buyers considering larger orders or those requiring specific configuration confirmation before order.

What payment terms are available?

Standard terms involve a deposit at order placement with the balance due before shipping. For Argentine buyers, agricultural credit lines through Banco de la Nación Argentina and the Secretaría de Agricultura's equipment financing schemes may apply. For international buyers, letter of credit payment terms are available. Contact us to discuss the structure suited to your situation.

How do I order spare parts after delivery?

Contact [email protected] with your machine serial number and the part number or description from the parts catalogue. We confirm availability, price, and dispatch time within one business day. Common consumables are stocked at our Buenos Aires warehouse for same-week dispatch.

ISO9001‑Certified Manufacturing

ISO 9001:2015‑certified manufacturing under Beijing United Certification audit. Two production lines deliver 2,000‑plus units annually with CNC dimensional accuracy and robotic weld consistency.
